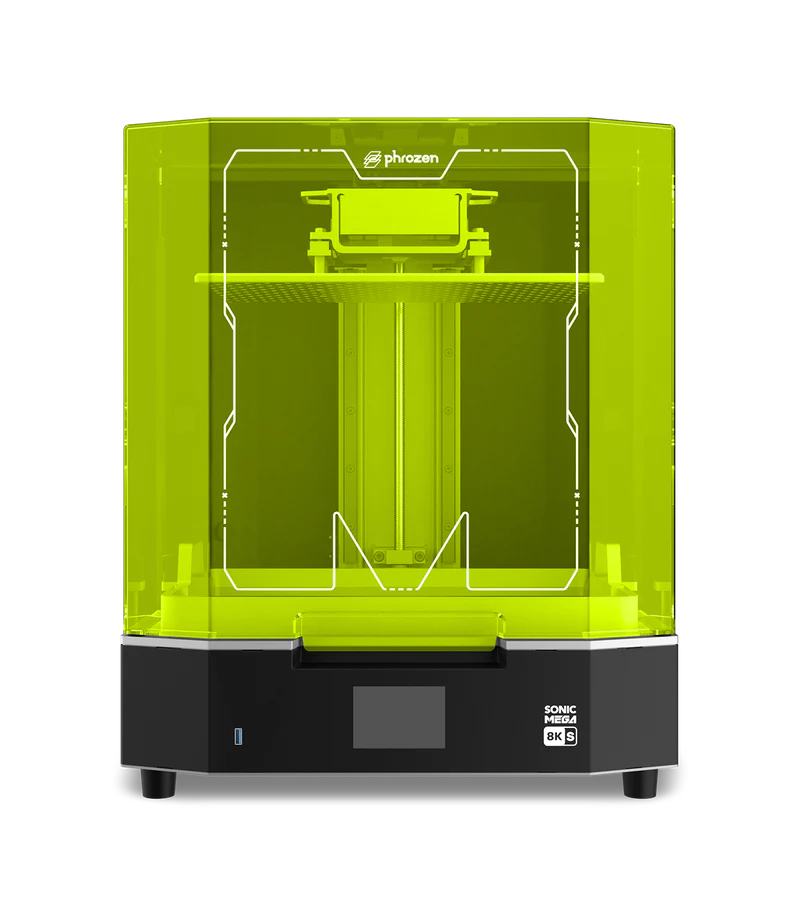

Sonic Mega 8K S

Phrozen Sonic Mega 8K S is an mSLA (LCD) type of 3D printer designed for high-speed, mass-model production. With a printing speed of 600 layers/hour, it effectively increases efficiency in mass production. 8K resolution brings high details on printed models. New Phrozen Sonic Mega 8K S is equipped with a built-in Resin Drip Hanger to hang the build plate after you are done printing.

Read More

Sonic Mega 8K S Printer Specifications

System: Phrozen OS XY Resolution: 43µm
Operation: 3.5 in Touch Panel Layer Thickness: 0.01-0.30mm
Slicer Software: CHITUBOX V1.9.0 or above Printing Speed: 600 layers/hr
Connectivity: USB Printer Size: L47.2 x W38 x H56.6 cm
Technology: Resin 3D Printer – LCD Type (MSLA) Print Volume: L33 x W18.5 x H30 cm
LCD Specification: 15″ 8K Mono LCD Printer Weight: 26kg
Light Source: 405nm ParaLED® Matrix 3.0 Power Requirement: AC100-240V；50-60Hz

Sonic Mega 8k S Printer Settings

Try our UNICAL™ Calibration Model

If you’re trying Monocure 3D Resin for the first time or have just got a new printer, you’ll need to tweak your slicer settings to ensure perfect synergy between our resin and your printer. The most efficient way to achieve this is by using a Calibration Model. These small, intricate models are quick to print. To calibrate your printer using the UNICAL™ Download the STL model here and for step-by-step instructions on how to use the UNICAL™ head to our 3D Calibration Model Page.
