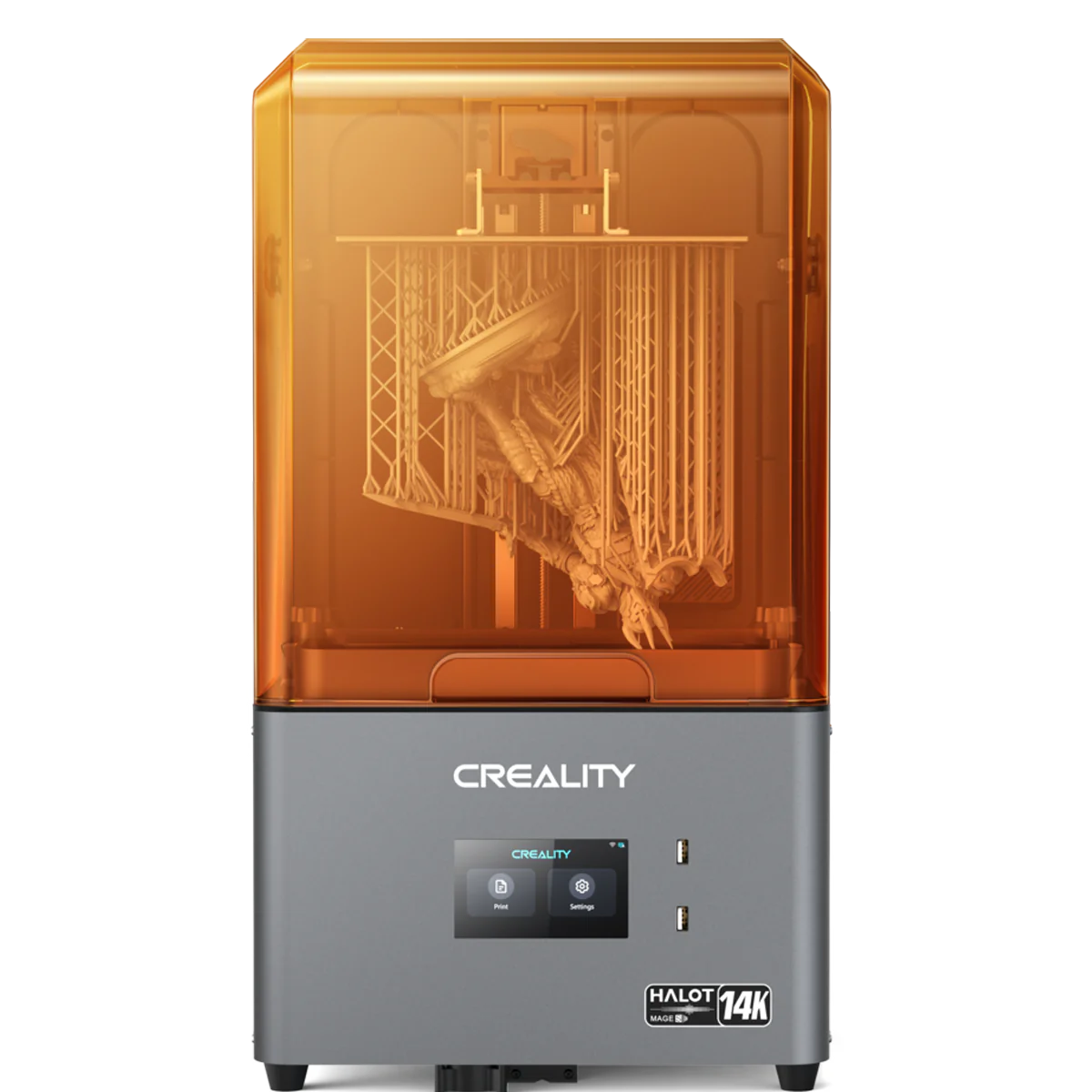

The HALOT-MAGE S 14K Resin 3D Printer is the evolution of the range, leaping in resolution from the 8K printer that impressed us so much earlier in the year. There are a few key differences beyond just the resolution between the HALOT-MAGE Pro and the HALOT-MAGE S, with this printer focusing more on high-quality sharp edges and resolution than the speed of the 8K version.
The HALOT-MAGE S again has a large LCD screen, impressive speeds, and a variety of options that enable you to upgrade certain features, such as the smart resin pump, as and when you need them. What is surprising is that the HALOT-MAGE S, offering a higher resolution, will create more detailed models than the Pro version. It also comes at a slightly lower price.
HALOT mage S 14K Printer Specifications
| Operation : | 4.3″ color touchscreen | Light Intensity: | 3500±10%μW/cm² | |
| Software : | HALOT BOX/CHITUBOX/Tango | Printing Speed: | 150mm/h | |
| Connectivity: | USB Drive, RJ45 Ethernet Cable, WiFi | Rated Power: | 100W | |
| Technology: | 10.1″ | Machine size: | 333x270x608mm | |
| Light-source: | LCD | Print size: | 223*126*230mm | |
| XY Resolution: | 16.8*24.8μm | Material: | 405nm UV Resin | |
| Z Axis Res.: | 0.05-0.2mm | Net Weight: | 13.13kg |
HALOT mage S 14K Settings
Try our UNICAL™ Calibration Model
If you’re trying Monocure 3D Resin for the first time or have just got a new printer, you’ll need to tweak your slicer settings to ensure perfect synergy between our resin and your printer.
The most efficient way to achieve this is by using a Calibration Model. These small, intricate models are quick to print. To calibrate your printer using the UNICAL™ Download the STL model here and for step-by-step instructions on how to use the UNICAL™ head to our 3D Calibration Model Page.
