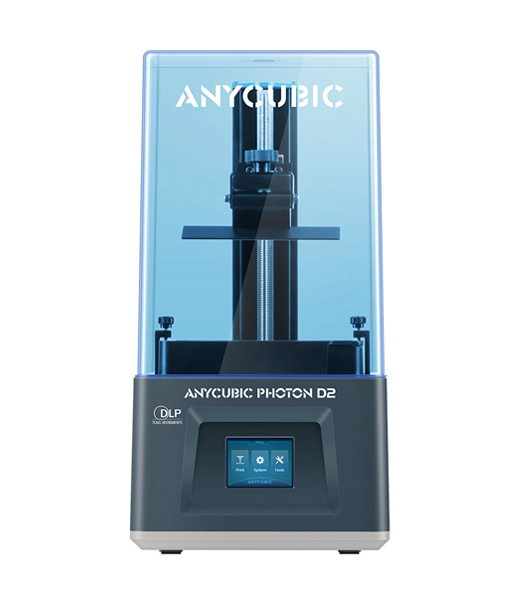

Photon D2

The Photon D2 has a 2K projector, meaning its voxels (the 3D equivalent of a pixel) are arranged 2560 x 1440 with a maximum density of 498 ppi. Maximum PPI is especially important here as DLP PPI is subject to change as the projector zooms in and out.

Learn More

Photon D2 Printer Specifications

Operation : 2.8″ TFT touch-control Display Resolution: 498ppi
Software : ANYCUBIC Photon workshop Printing Speed: ≥2.5s/layer
Connectivity: USB 2.0 Rated Power: 15W
Technology: DLP Machine size: 17.2 x 9.3 x 8.9 in. / 438 x 236 x 226 mm(HWD)
Light-source: 2K projector Print size: 6.5 x 5.1 x 2.9 in. / 165 x 131 x 73 mm (HWD)
XY Res.: 51 microns (2,560 x 1,440 pixels) Material: 405nm UV Resin
Z Axis Res.: 10 microns Net Weight: 8.8 lb./4 kg

Photon D2 Settings

Try our UNICAL™ Calibration Model

If you’re trying Monocure 3D Resin for the first time or have just got a new printer, you’ll need to tweak your slicer settings to ensure perfect synergy between our resin and your printer. The most efficient way to achieve this is by using a Calibration Model. These small, intricate models are quick to print. To calibrate your printer using the UNICAL™ Download the STL model here and for step-by-step instructions on how to use the UNICAL™ head to our 3D Calibration Model Page.
