GK3

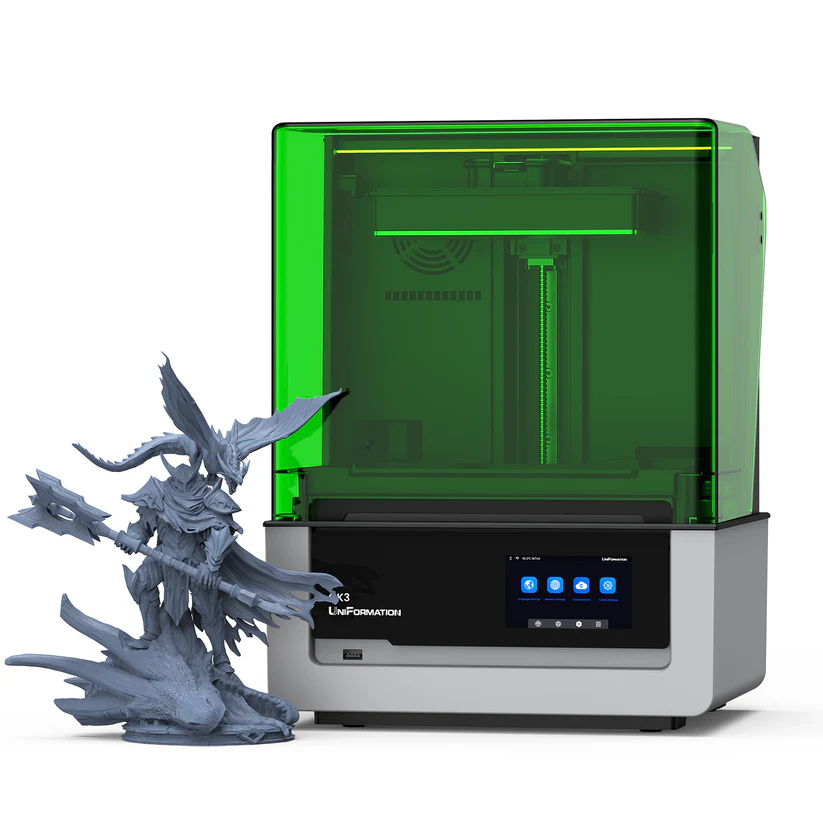

Introducing the GK3 resin printer from Uniformation with an amazing screen resolution, great build volume size, an auto-resin refill system and a heated chamber to ensure the best print quality.

Learn More

GK3 Specifications

Third-Party Materials: Yes XY Resolution: 14 x 19 μm
Touchscreen: 5-inch rotating capacitive touch screen ( 90° rotation) Exposure time: 2-3s/layer（0.05mm）
Slicer Software: UniFormation Slicer, Chitubox, Lychee Slicer Release Film: nFEP Film
Connectivity: Wi-Fi, Ethernet, USB Power Requirements: 110/220V
Display type: 16K 9.6-Inch Mono LCD Screen Product Size： 392 x 332 x 520 mm
Wavelength Range 405nm Build Volume: 211 x 118 x H240 mm
Layer Height： 0.03、0.05、0.1mm Package Weight： 24KG

GK3 Settings

Try our UNICAL™ Calibration Model

If you’re trying Monocure 3D Resin for the first time or have just got a new printer, you’ll need to tweak your slicer settings to ensure perfect synergy between our resin and your printer. The most efficient way to achieve this is by using a Calibration Model. These small, intricate models are quick to print. To calibrate your printer using the UNICAL™ Download the STL model here and for step-by-step instructions on how to use the UNICAL™ head to our 3D Calibration Model Page.
