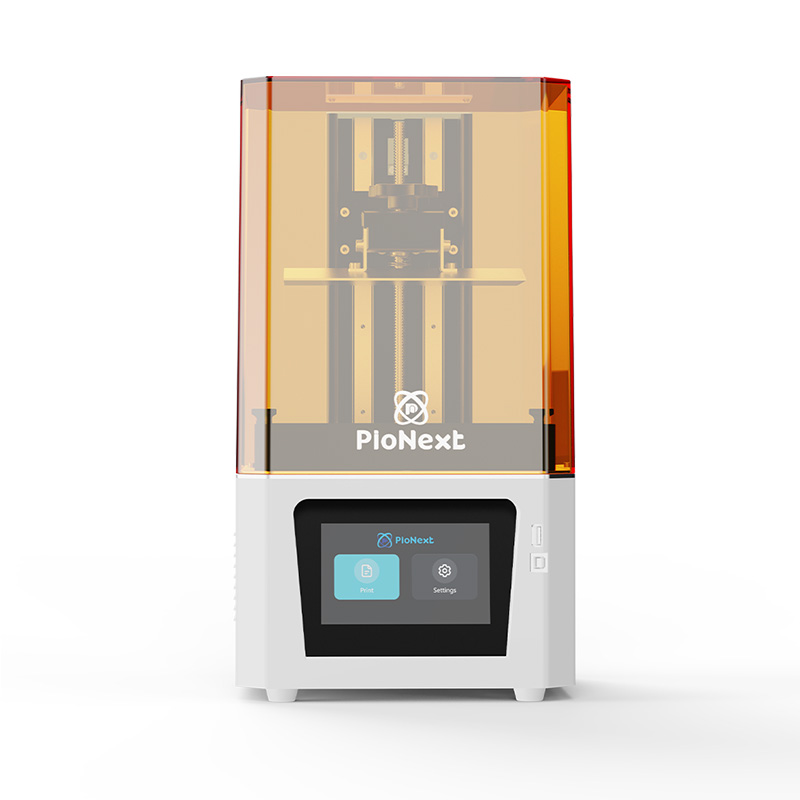

DJ68 9K

The PioNext DJ68 is equipped with a 6.8″ 9K ultra-clear LCD monochrome printing screen. With 8520*4320px ultra-clear resolution and XY-axis accuracy of 18um Capable of printing higher precision models with clearer surface details and textures.

Learn More

DJ68 9K Specifications

Third-Party Materials: Yes Rated power: 70W
Connection method: USB/WIFI Print layer thickness: 0.025-0.1mm
Slicer Software: VoxelDance Tango / PioCreat Box Printing Speed: 60mm/h
Resolution: 8520 x 4320 6.8​” 9K XY axis accuracy: 18μm
Zaxis type: Dual linear guide rails + T-shaped screw Dimensions: 221 x 221 x 404mm
Light source: COB (wavelength 405nm) Build Volume: 153 x 77 x 160mm
Touchscreen: 5-inch color touchscreen Power Requirements: DC 24V

DJ68 9K Settings

Try our UNICAL™ Calibration Model

If you’re trying Monocure 3D Resin for the first time or have just got a new printer, you’ll need to tweak your slicer settings to ensure perfect synergy between our resin and your printer. The most efficient way to achieve this is by using a Calibration Model. These small, intricate models are quick to print. To calibrate your printer using the UNICAL™ Download the STL model here and for step-by-step instructions on how to use the UNICAL™ head to our 3D Calibration Model Page.
