D160

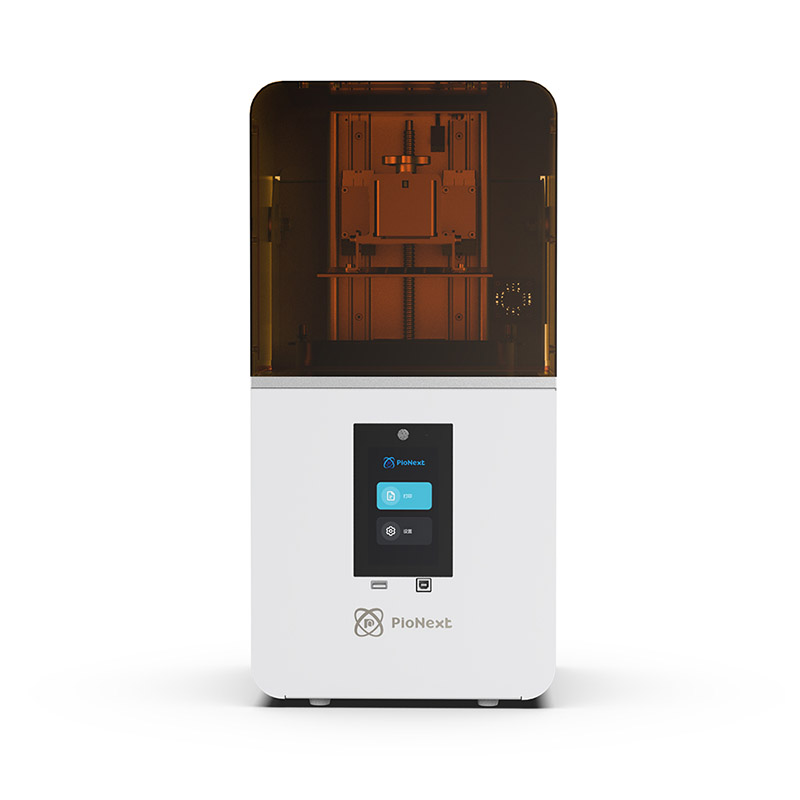

PioNext D160 digital DLP 3d printer DLP UV projector 3d printer designed for dental and medical purposes.

Learn More

D160 Specifications

Third-Party Materials: Yes Rated power: 60W
Connection method: USB/WIFI Pixel Dimensions: 0.062mm
Slicer Software: PioNext Box Printing Speed: 60mm/h
Z-axis precision: 0.01mm XY axis accuracy: 50μm
Zaxis type: double linear guide+ballscrew Dimensions: 280×264×573mm
Light source: COB (wavelength 405nm) Build Volume: 158×89×100mm
Touchscreen: 5-inch color touchscreen Weight: 13KG

D160 Settings

Try our UNICAL™ Calibration Model

If you’re trying Monocure 3D Resin for the first time or have just got a new printer, you’ll need to tweak your slicer settings to ensure perfect synergy between our resin and your printer. The most efficient way to achieve this is by using a Calibration Model. These small, intricate models are quick to print. To calibrate your printer using the UNICAL™ Download the STL model here and for step-by-step instructions on how to use the UNICAL™ head to our 3D Calibration Model Page.
